09 0474 780 08 | binder

Name: Panel socket, 8 pole, crimp connection, screw locking, straight, 09 0474 780 08
Brand: binder
SKU: 67F5971
Price: 5.91 EUR
Availability: OutOfStock

Panel socket, 8 pole, crimp connection, screw locking, straight, 09 0474 780 08

Order No.: 67F5971

EAN: 4099889703306

MPN:

09 0474 780 08

Series: 680

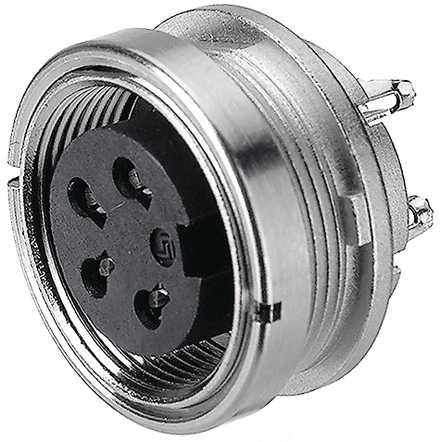

09 0474 780 08 binder Other Circular Connectors Image 2

Image may differ

Key Specification:

Ausführung Einbaubuchse

Polzahl 8-polig

Orientierung gerade

Kontaktanschluss Crimpanschluss

Show 5 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

5.9143 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

5.91 € *

Price list

Quantity

Price per unit*

1 pcs.

5.9143 €

10 pcs.

5.3193 €

50 pcs.

4.6767 €

100 pcs.

4.0698 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Miniature connector, 09-0474-780-08, BINDER

M16 IP40 Female panel mount connector, Contacts: 8 DIN, unshielded, crimping, IP40, front mounting.

Features

EMC capability: Unshielded
Pollution degree: 1
Overvoltage category: I

Technical specifications

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Herstellerkatalog - DE/EN Herstellerkatalog

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	85369010

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	No
Substanz Beschreibung	Blei
