09 0474 90 08 | binder

Panel socket, 8 pole, solder pin, screw locking, straight, 09 0474 90 08

Order No.: 66F574
EAN: 4099889727821
MPN:
09 0474 90 08
Series: 680
binder

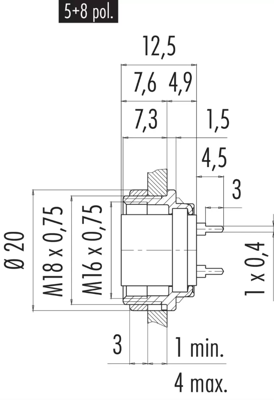

09 0474 90 08 binder Other Circular Connectors Image 1
09 0474 90 08 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
6.3427 € *
Available: 1,701 pcs.
Available in 5 Days: 100 pcs.
Leadtime: On Request **
Total Price:
6.34 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3427 €
10 pcs.
5.9143 €
*incl. VAT plus shipping costs
**Subject to prior sale

Built-in circular connector type Binder 680.

With central thread, for solder connection or solder pin connection for PCB mounting, compatible with other makes of the same contact arrangement; Contacts: Socket contacts CuSn, pin contacts CuZn, Surface plug contacts: vergoldet, Drill hole diameter for printed circuit board design: 0,8 mm, Cable connection for solder version: max. 0,25 mm², Contact carrier: UL 94 V-0), Housing: Zinc die casting, nickel plated,Interlocking: by screwing, Protection class when mated (IEC 60529): IP 40, Volume Resistance: 3,0 mOhm, Insulation resistance: min. 10 GOhm, Mating cycles: min. 500, Operating temperature: - 40 bis +85 °C.

Female panel mount connector, front screw mount, PCB solder pins, type 680.

Technical attributes (type, number of poles, rated voltage/rated current (40 °C)): 09-0474-90-08, 8-pole, 60 V/5.0 A

Technical specifications
Version panel socket
Additional parts equipped
Shell Material zinc die casting
Cable diameter 3 to 6 mm
Contact connection solder pin
contact surface silver-plated
Cable cross-section 0.75 mm²
Assembly PCB mounting
Orientation straight
Pin number 8 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
