09 0774 400 08 | binder
Panel socket, 8 pole, solder connection, bayonet locking, straight, 09 0774 400 08
Unit Price (€ / pc.)
13.5541 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
13.55 € *
Price list
Quantity
Price per unit*
1 pcs.
13.5541 €
10 pcs.
12.6021 €
50 pcs.
11.7215 €
100 pcs.
10.9004 €
*incl. VAT plus shipping costs
**Subject to prior sale

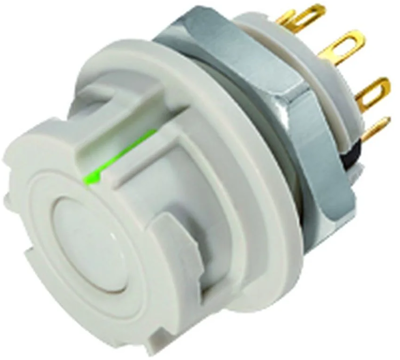

Female panel mount connector, 09 0774 400 08, binder
Bayonet NCC Female panel mount connector, Contacts: 8, unshielded, solder, IP67.
Technical specifications
| Version | Einbaubuchse | |
| Additional parts | bestückt | |
| Shell Material | PA | |
| Contact connection | Lötanschluss | |
| contact surface | vergoldet | |
| Cable cross-section | 0,25 mm² | |
| Assembly | Panelmontage | |
| Orientation | gerade | |
| Pin number | 8-polig | |
| Type of locking | Bajonettverriegelung |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
