99 0102 118 02 | binder

Angle coupling, 2 pole, solder connection, screw locking, angled, 99 0102 118 02

Order No.: 70P1567
EAN: 4099891703806
MPN:
99 0102 118 02
Series: 723
binder

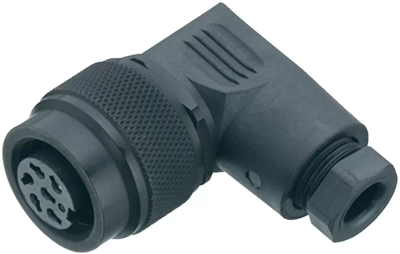

99 0102 118 02 binder Other Circular Connectors Image 1

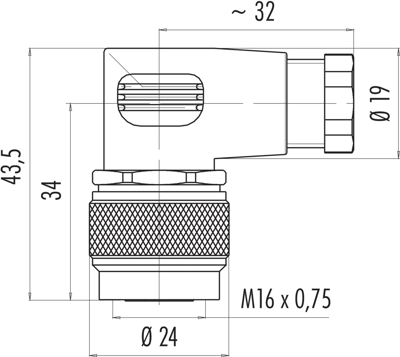

99 0102 118 02 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
26.0372 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
26.04 € *
Price list
Quantity
Price per unit*
1 pcs.
26.0372 €
10 pcs.
24.4664 €
25 pcs.
23.0027 €
50 pcs.
21.6223 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female angled connector, 99 0102 118 02, binder

M16 IP67 Female angled connector, Contacts: 2, 4.0-6.0 mm, unshielded, solder, IP67.

Technical specifications
Version angle coupling
Additional parts equipped
Shell Material PA
Cable diameter 4 to 6 mm
Contact connection solder connection
contact surface gold-plated
Cable cross-section 0.75 mm²
Assembly cable assembly
Orientation angled
Pin number 2 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
