99 0135 12 03 | binder
Angle plug, 3 pole, solder connection, screw locking, angled, 99 0135 12 03
Unit Price (€ / pc.)
14.4704 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
14.47 € *
Price list
Quantity
Price per unit*
1 pcs.
14.4704 €
10 pcs.
13.4470 €
50 pcs.
12.5069 €
100 pcs.
11.6382 €
*incl. VAT plus shipping costs
**Subject to prior sale

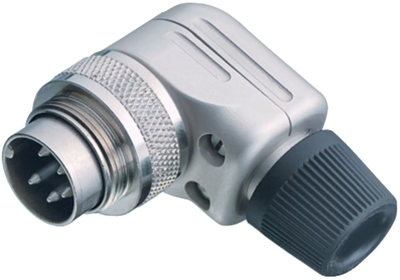

Male angled connector, 99 0135 12 03, binder

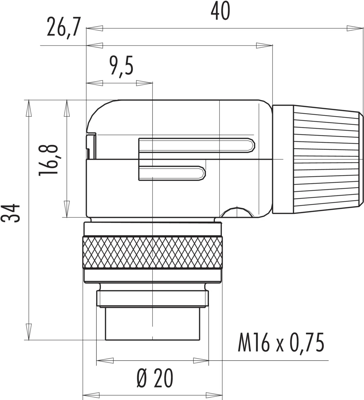

M16 IP40 Male angled connector, Contacts: 3 DIN, 6.0-8.0 mm, shieldable, solder, IP40.
Technical specifications
| Version | Winkelstecker | |
| Cable cross-section | 0,75 mm² | |
| Pin number | 3-polig | |
| Orientation | abgewinkelt | |
| Contact connection | Lötanschluss | |
| Type of locking | Schraubverriegelung | |
| Cable diameter | 6 bis 8 mm | |
| Assembly | Kabelmontage | |
| Additional parts | bestückt | |
| contact surface | versilbert | |
| Shell Material | Zinkdruckguss |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
