99 0143 12 06 | binder

Angle plug, 6 pole, solder cup, screw locking, angled, 99 0143 12 06

Order No.: 66F805
EAN: 4099889728880
MPN:
99 0143 12 06
Series: 682

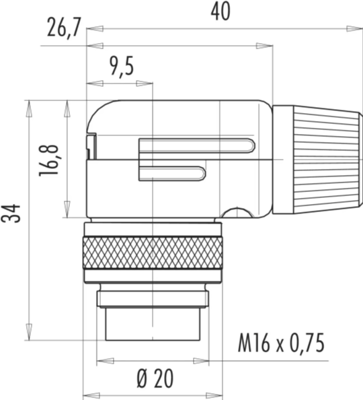

99 0143 12 06 binder Other Circular Connectors Image 1

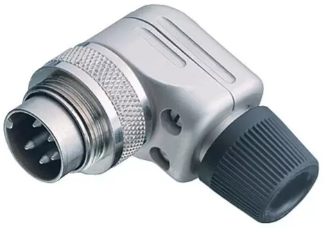

99 0143 12 06 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.0765 € *
Available: 6 pcs.
Leadtime: On Request **
Total Price:
17.08 € *
Price list
Quantity
Price per unit*
1 pcs.
17.0765 €
10 pcs.
15.0297 €
50 pcs.
14.0182 €
150 pcs.
13.3875 €
500 pcs.
12.7092 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male connector, 99-0143-12-06, Binder

M16 IP40 male angled connector, Contacts: 6 DIN, 6.0 - 8.0 mm, shieldable, solder, IP40

Technical Data

  • Contact connection: Solder cup
  • Rated voltage: 30 V
  • Number of positions: 6
  • Housing material: PA
  • Contact plating: Ag (silver)
Technical specifications
Version Winkelstecker
Cable cross-section 0,75 mm²
Pin number 6-polig
Orientation abgewinkelt
Contact connection Lötkelch
Type of locking Schraubverriegelung
Cable diameter 6 bis 8 mm
Assembly Kabelmontage
Additional parts bestückt
contact surface versilbert
Shell Material Zinkdruckguss
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
