99 0147 10 12 | binder
Angle plug, 12 pole, solder connection, screw locking, angled, 99 0147 10 12
Unit Price (€ / pc.)
20.8131 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
20.81 € *
Price list
Quantity
Price per unit*
1 pcs.
20.8131 €
10 pcs.
19.5636 €
50 pcs.
18.3974 €
100 pcs.
17.2907 €
*incl. VAT plus shipping costs
**Subject to prior sale

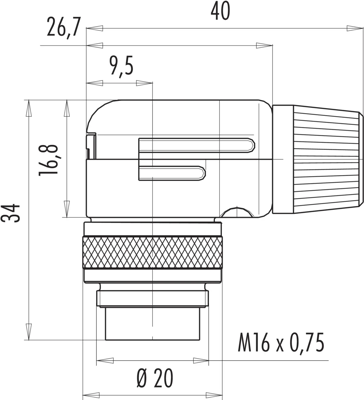

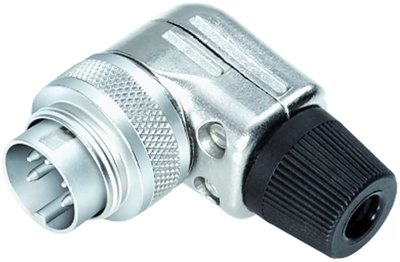

Male angled connector, 99 0147 10 12, binder
M16 IP40 Male angled connector, Contacts: 12, 4.0-6.0 mm, shieldable, solder, IP40.
Technical specifications
| Version | angle plug | |
| Additional parts | equipped | |
| Shell Material | zinc die casting | |
| Cable diameter | 4 to 6 mm | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.25 mm² | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 12 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
