99 0148 12 12 | binder

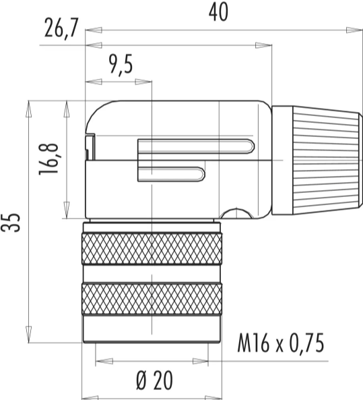

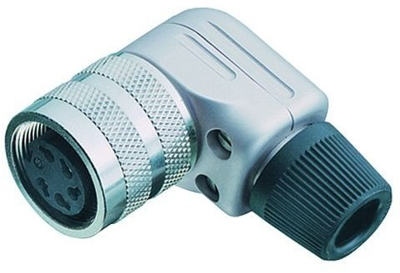

Angle coupling, 12 pole, solder connection, screw locking, angled, 99 0148 12 12
Unit Price (€ / pc.)
24.9900 € *
Available: 53 pcs.
Available in 5 Days: 100 pcs.
Leadtime: On Request **
Total Price:
24.99 € *
Price list
Quantity
Price per unit*
1 pcs.
24.9900 €
10 pcs.
21.9793 €
50 pcs.
20.4918 €
150 pcs.
19.5755 €
500 pcs.
18.5759 €
*incl. VAT plus shipping costs
**Subject to prior sale
Miniature connector, 99-0148-12-12, BINDER
M16 IP40 Female angled connector, Contacts: 12, 6.0-8.0 mm, shieldable, solder, IP40.
Features
- Contact material: CuSn (Bronze)
- Degree of protection: IP40
- Pollution degree: 1
- Overvoltage category: I
Technical specifications
| Version | angle coupling | |
| Shell Material | zinc die casting | |
| Cable diameter | 6 to 8 mm | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.25 mm² | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 12 pole | |
| Type of locking | screw locking |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
