99 0161 10 14 | binder
Angle plug, 14 pole, solder connection, screw locking, angled, 99 0161 10 14
Unit Price (€ / pc.)
22.7052 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
22.71 € *
Price list
Quantity
Price per unit*
1 pcs.
22.7052 €
10 pcs.
21.3486 €
50 pcs.
20.0634 €
100 pcs.
18.8615 €
*incl. VAT plus shipping costs
**Subject to prior sale

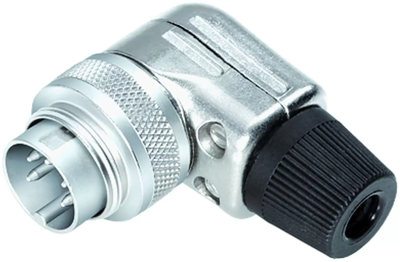

Male angled connector, 99 0161 10 14, binder

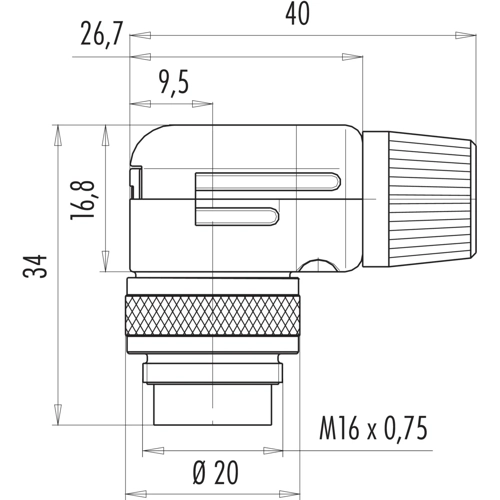

M16 IP40 Male angled connector, Contacts: 14, 4.0-6.0 mm, shieldable, solder, IP40.
Technical specifications
| Version | angle plug | |
| Additional parts | equipped | |
| Shell Material | zinc die casting | |
| Cable diameter | 4 to 6 mm | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.25 mm² | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 14 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
