99 0202 00 07 | binder

Jack, 6 pole + PE, crimp connection, screw locking, straight, 99 0202 00 07

Order No.: 70P0840
EAN: 4099891700126
MPN:
99 0202 00 07
Series: 692
binder

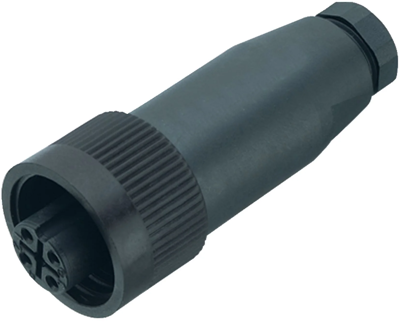

99 0202 00 07 binder Other Circular Connectors Image 1

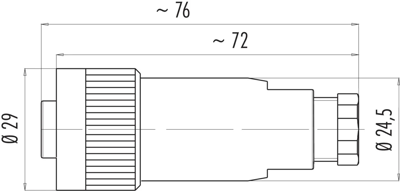

99 0202 00 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
8.1515 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
8.15 € *
Price list
Quantity
Price per unit*
1 pcs.
8.1515 €
10 pcs.
7.3304 €
50 pcs.
6.4498 €
100 pcs.
5.8072 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female cable connector, 99 0202 00 07, binder

RD24 Female cable connector, Contacts: 6+PE, 6.0-8.0 mm, unshielded, crimping, IP67, PG 9.

Technical specifications
Version jack
Additional parts unequipped
Cable diameter 6 to 8 mm
Contact connection crimp connection
contact surface silver-plated
Assembly cable assembly
Orientation straight
Pin number 6 pole + PE
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
