99 0209 210 04 | binder
Angle plug, 3 pole + PE, screw connection, screw locking, angled, 99 0209 210 04
Unit Price (€ / pc.)
18.6830 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
18.68 € *
Price list
Quantity
Price per unit*
1 pcs.
18.6830 €
10 pcs.
17.5525 €
50 pcs.
16.5053 €
100 pcs.
15.5057 €
*incl. VAT plus shipping costs
**Subject to prior sale

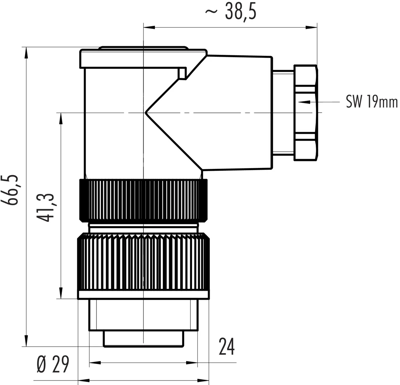

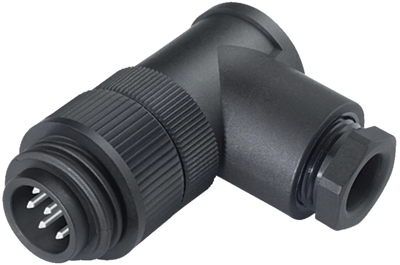

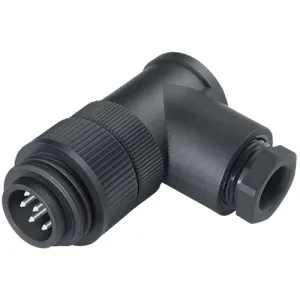

Male angled connector, 99 0209 210 04, binder
RD24 Male angled connector, Contacts: 3+PE, 8.0-10.0 mm, unshielded, screw clamp, IP67, PG 11.
Technical specifications
| Version | angle plug | |
| Additional parts | equipped | |
| Cable diameter | 8 to 10 mm | |
| Contact connection | screw connection | |
| contact surface | silver-plated | |
| Cable cross-section | 2.5 mm² | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 3 pole + PE | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
