99 0213 70 07 | binder

Angle plug, 6 pole + PE, solder connection, screw locking, angled, 99 0213 70 07

Order No.: 70P0857
EAN: 4099891700294
MPN:
99 0213 70 07
Series: 692

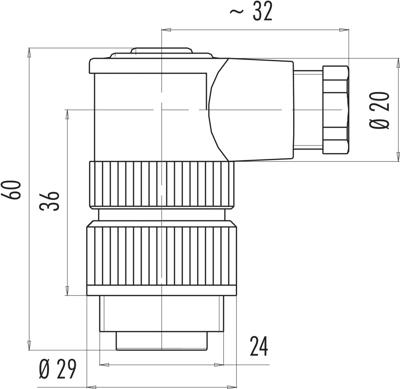

99 0213 70 07 binder Other Circular Connectors Image 1

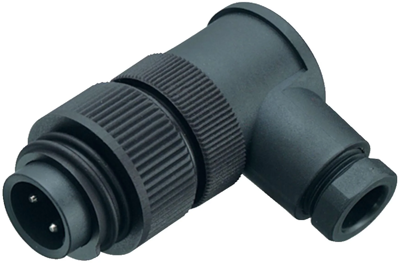

99 0213 70 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.6477 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
17.65 € *
Price list
Quantity
Price per unit*
1 pcs.
17.6477 €
10 pcs.
16.5886 €
50 pcs.
15.5890 €
100 pcs.
14.6489 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male angled connector, 99 0213 70 07, binder

RD24 Male angled connector, Contacts: 6+PE, 6.0-8.0 mm, unshielded, solder, IP67, PG 9.

Technical specifications
Version Winkelstecker
Additional parts bestückt
Cable diameter 6 bis 8 mm
Contact connection Lötanschluss
contact surface versilbert
Cable cross-section 0,75 mm²
Assembly Kabelmontage
Orientation abgewinkelt
Pin number 6-polig + PE
Type of locking Schraubverriegelung
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
