99 0214 110 07 | binder

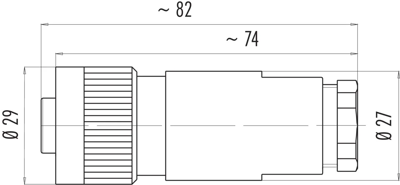

Jack, 6 pole + PE, solder connection, screw locking, straight, 99 0214 110 07
Unit Price (€ / pc.)
16.2316 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
16.23 € *
Price list
Quantity
Price per unit*
1 pcs.
16.2316 €
10 pcs.
15.1011 €
50 pcs.
14.0420 €
100 pcs.
13.0543 €
*incl. VAT plus shipping costs
**Subject to prior sale
Female cable connector, 99 0214 110 07, binder
RD24 Female cable connector, Contacts: 6+PE, 8.0-10.0 mm, unshielded, solder, IP67, PG 11.
Technical specifications
| Version | jack | |
| Additional parts | equipped | |
| Cable diameter | 8 to 10 mm | |
| Contact connection | solder connection | |
| contact surface | silver-plated | |
| Cable cross-section | 0.75 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 6 pole + PE | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
