99 0218 15 07 | binder
Jack, 6 pole + PE, screw connection, screw locking, straight, 99 0218 15 07
Unit Price (€ / pc.)
20.0515 € *
Available: 0 pcs.
Available in 5 Days: 50 pcs.
Leadtime: On Request **
Total Price:
20.05 € *
Price list
Quantity
Price per unit*
1 pcs.
20.0515 €
10 pcs.
17.6477 €
50 pcs.
16.4458 €
150 pcs.
15.7080 €
500 pcs.
14.8988 €
*incl. VAT plus shipping costs
**Subject to prior sale

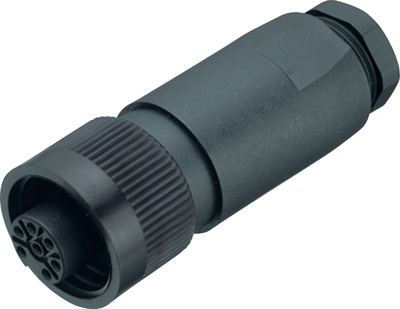

Female cable connector, 99-0218-15-07, Franz Binder
RD24 Female connector, poles 6+PE, 10.0-12.0 mm, unshielded, screw clamp, IP67, PG 13.5
Technical specifications
| Version | jack | |
| Shell Material | PBT | |
| Cable diameter | 10 to 12 mm | |
| Contact connection | screw connection | |
| contact surface | silver-plated | |
| Cable cross-section | 1.5 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 6 pole + PE | |
| Type of locking | screw locking |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
