99 0401 75 02 | binder

Angle plug, 2 pole, solder connection, screw locking, angled, 99 0401 75 02

Order No.: 70P0971
EAN: 4099891701116
MPN:
99 0401 75 02
Series: 712
binder

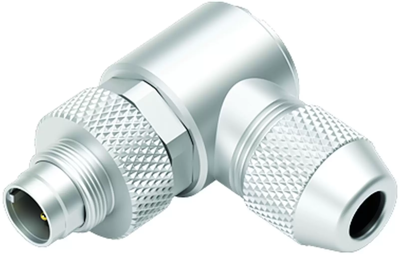

99 0401 75 02 binder Other Circular Connectors Image 1
99 0401 75 02 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
23.1098 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
23.11 € *
Price list
Quantity
Price per unit*
1 pcs.
23.1098 €
10 pcs.
21.7294 €
50 pcs.
20.4204 €
100 pcs.
19.1947 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male angled connector, 99 0401 75 02, binder

M9 IP67 Male angled connector, Contacts: 2, 3.5-5.0 mm, shieldable, solder, IP67.

Technical specifications
Version angle plug
Additional parts equipped
Cable diameter 3.5 to 5 mm
Contact connection solder connection
contact surface gold-plated
Cable cross-section 0.25 mm²
Assembly cable assembly
Orientation angled
Pin number 2 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
