99 0414 00 05 | binder

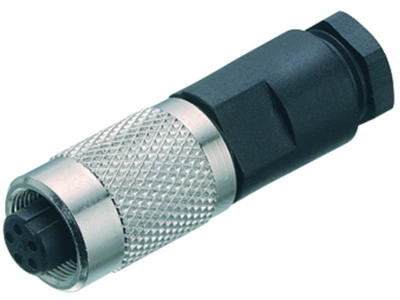

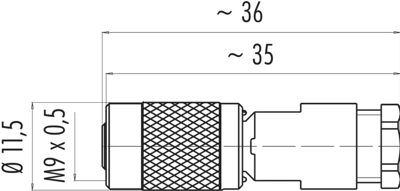

Jack, 5 pole, solder connection, screw locking, straight, 99 0414 00 05
Subminiature circular connector, type Binder 712.
With screw lock and solder terminals for simple assembly; Female contacts: copper tin. Male contacts:copper zinc. Contact finish: gold-plated. Wiring cross-section: max. 0.25 mm². Contact carrier:male/female: PBT/PA 66 to UL 94 V-0. Cable housing: PA 66 to UL 94 HB. Flanged housing: copper zinc.Cable outlet: 3.5 to 5.0 mm. Degree of protection housing: (IEC 60529): IP 67. Degree of soiling: 1. Rated voltage: 125 VAC. Test surge voltage: 1750 VAC. Rated current: (at 40 °C): 3.0 A. Contact resistance: max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Mechanical useful life: at least 500 insertion cycles. Operating temperatures: - 40 to +85 °C.
Female cable connectors, type 712.
Type: 99-0414-00-05, 5-pole
| Ausführung | Kupplung | |
| Bestückung | bestückt | |
| Kontaktanschluss | Lötanschluss | |
| Kontaktoberfläche | vergoldet | |
| Montage | Kabelmontage | |
| Orientierung | gerade | |
| Polzahl | 5-polig | |
| Verriegelung | Schraubverriegelung |
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
