99 0476 100 07 | binder

Jack, 7 pole, solder connection, screw locking, straight, 99 0476 100 07

Order No.: 71F231
EAN: 4099889703696
MPN:
99 0476 100 07
Series: 711
binder

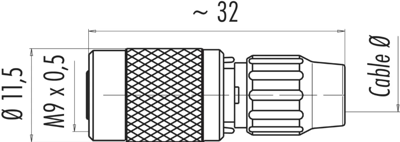

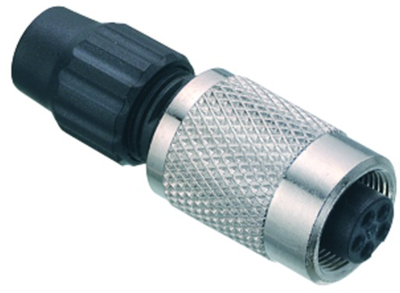

99 0476 100 07 binder Other Circular Connectors Image 1
99 0476 100 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
15.5057 € *
Available: 85 pcs.
Leadtime: On Request **
Total Price:
15.51 € *
Price list
Quantity
Price per unit*
1 pcs.
15.5057 €
10 pcs.
13.6374 €
50 pcs.
12.7092 €
150 pcs.
12.1499 €
500 pcs.
11.5430 €
*incl. VAT plus shipping costs
**Subject to prior sale

Subminiature circular connector, type Binder 711.

With screw lock. Compact and highly reliable; Female contacts: CuSn, male contacts:copper zinc. Contact finish: gold-plated. Cable cross-section: solder contacts. max. 0.14 mm². Contact carrier: plug/jack: PBT/PA 66 to UL 94 V-0. Cable housing: PA 66 to UL 94 V-0. Flanged housing: CuZn. Cable exit: 3.0 to 4.0 mm. Degree of protection housing: (IEC 60529): IP 40. Degree of soiling: 1, Rated voltage: 125 VAC. Test surge voltage: 1750 VAC. Rated current: (at 40 °C): 1.0 A. Contact resistance: max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Mechanical useful life: at least 500 insertion cycles. Operating temperatures: - 40 to +85 °C.

Female cable connectors, type 711.

Type: 99-0476-100-07, 7-pole

Technical specifications
Version jack
Additional parts equipped
Contact connection solder connection
contact surface gold-plated
Assembly cable assembly
Orientation straight
Pin number 7 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
