99 0609 72 04 | binder

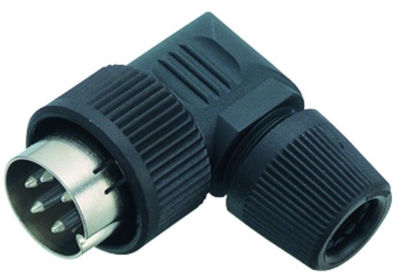

Angle plug, 4 pole, solder cup, bayonet locking, angled, 99 0609 72 04
Unit Price (€ / pc.)
12.8758 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
12.88 € *
Price list
Quantity
Price per unit*
1 pcs.
12.8758 €
10 pcs.
11.9714 €
50 pcs.
11.1265 €
100 pcs.
10.0198 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector, 99-0609-72-04, Binder
Bayonet male angled connector, Contacts: 4, 6.0 - 8.0 mm, shielding is not possible, solder, IP40
Technical Data
- Contact connection: Solder cup
- Rated voltage: 250 V
- Number of positions: 4
- Housing material: PA
- Contact plating: Au (gold)
Technical specifications
| Version | Winkelstecker | |
| Additional parts | bestückt | |
| Shell Material | PA | |
| Cable diameter | 6 bis 8 mm | |
| Contact connection | Lötkelch | |
| contact surface | versilbert | |
| Cable cross-section | 0,75 mm² | |
| Assembly | Kabelmontage | |
| Orientation | abgewinkelt | |
| Pin number | 4-polig | |
| Type of locking | Bajonettverriegelung |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
