99 0610 02 04 | binder

Jack, 4 pole, solder cup, bayonet locking, straight, 99 0610 02 04

Order No.: 66F894
EAN: 4099889729146
MPN:
99 0610 02 04
Series: 678
binder

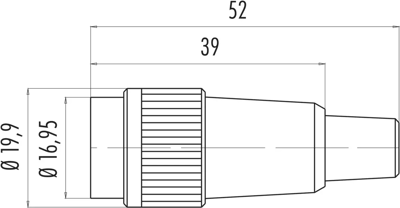

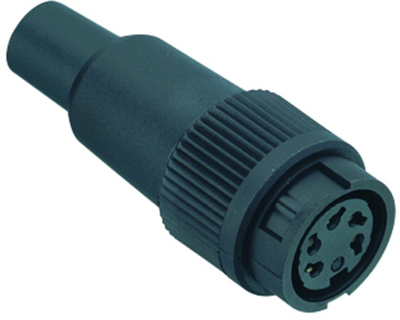

99 0610 02 04 binder Other Circular Connectors Image 1
99 0610 02 04 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
6.7949 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
6.79 € *
Price list
Quantity
Price per unit*
1 pcs.
6.7949 €
10 pcs.
6.1047 €
50 pcs.
5.3669 €
100 pcs.
4.6767 €
*incl. VAT plus shipping costs
**Subject to prior sale

Circular connector, type Binder 678.

With bayonet quick-lock. Compatible with other products that have the same contact arrangement;Contacts: female contacts copper tin, male contacts copper zinc. Plug contact finish: silver-plated. Cable connection: solder contacts max. 0.75 mm². Contact carrier: PBT in accordance with UL 94 V-0. Housing:PA 66 in accordance with UL 94 HB. Cable exit: max. 4.0 to 6.0 mm. Degree of protection when plugged in (IEC 60529): IP 40. Test surge voltage: 1750 VAC. Contact resistance: 5.0 mohm. Insulation resistance: at least 10 Gohm. Insertion cycles: at least 500. Operating temperatures: - 40 to +85 °C.

For cable outlets from 6.0 to 8.0 mm, type 678.

Technical attributes (type, number of poles, rated voltage/rated current (40 °C)): 99-0610-02-04, 4-pole, 250 V/6.0 A

Technical specifications
Version jack
Additional parts equipped
Shell Material PA
Cable diameter 6 to 8 mm
Contact connection solder cup
contact surface gold-plated
Cable cross-section 0.75 mm²
Assembly cable assembly
Orientation straight
Pin number 4 pole
Type of locking bayonet locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
