99 0646 70 08 | binder
Angle coupling, 8 pole, solder connection, bayonet locking, angled, 99 0646 70 08
Unit Price (€ / pc.)
22.9908 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
22.99 € *
Price list
Quantity
Price per unit*
1 pcs.
22.9908 €
10 pcs.
21.6104 €
50 pcs.
20.3133 €
100 pcs.
19.0876 €
*incl. VAT plus shipping costs
**Subject to prior sale

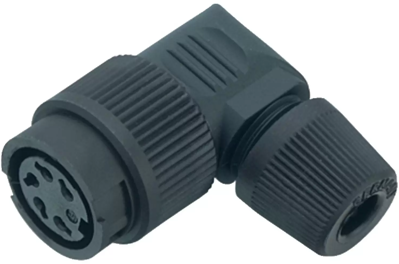

Female angled connector, 99 0646 70 08, binder
Bayonet Female angled connector, Contacts: 8 DIN, 4.0-6.0 mm, unshielded, solder, IP40.
Technical specifications
| Version | angle coupling | |
| Additional parts | equipped | |
| Shell Material | PA | |
| Cable diameter | 4 to 6 mm | |
| Contact connection | solder connection | |
| contact surface | silver-plated | |
| Cable cross-section | 0.75 mm² | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 8 pole | |
| Type of locking | bayonet locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
