99 0649 70 12 | binder

Angle plug, 12 pole, solder cup, bayonet locking, angled, 99 0649 70 12

Order No.: 66F844
EAN: 4099889729030
MPN:
99 0649 70 12
Series: 678

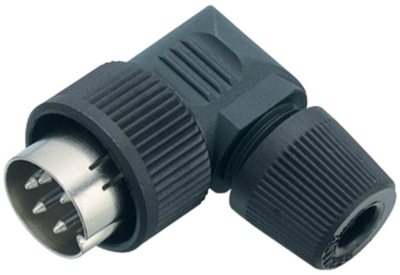

99 0649 70 12 binder Other Circular Connectors Image 1

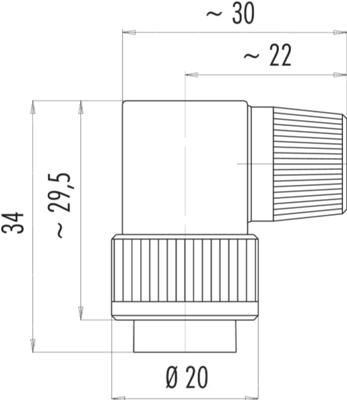

99 0649 70 12 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
18.7663 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
18.77 € *
Price list
Quantity
Price per unit*
1 pcs.
18.7663 €
10 pcs.
17.6358 €
50 pcs.
16.5767 €
100 pcs.
15.5771 €
*incl. VAT plus shipping costs
**Subject to prior sale

Circular connector, type Binder 678.

With bayonet quick-lock. Compatible with other products that have the same contact arrangement; Contacts: female contacts copper tin, male contacts copper zinc. Plug contact finish: gold-plated. Cable connection: max. 0.25 mm². Contact carrier: PBT in accordance with UL 94 V-0. Housing: PA 66 in accordance with UL 94 HB. Cable exit: max. 4.0 to 6.0 mm. Degree of protection when plugged in (IEC 60529): IP 40. Test surge voltage: 550 VAC. Contact resistance: 3.0 mohm. Insulation resistance: at least 10 Gohm. Insertion cycles: at least 500. Operating temperatures: - 40 to +85 °C.

Male angled connectors, type 678.

Technical attributes (type, number of poles, rated voltage/rated current (40 °C)): 99-0649-70-12, 12-pole, 60 V/3.0 A

Technical specifications
Version Winkelstecker
Additional parts bestückt
Shell Material PA
Cable diameter 4 bis 6 mm
Contact connection Lötkelch
contact surface vergoldet
Cable cross-section 0,25 mm²
Assembly Kabelmontage
Orientation abgewinkelt
Pin number 12-polig
Type of locking Bajonettverriegelung
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
