99 0653 00 14 | binder

Plug, 14 pole, solder cup, bayonet locking, straight, 99 0653 00 14

Order No.: 66F806
EAN: 4099889728897
MPN:
99 0653 00 14
Series: 678
binder

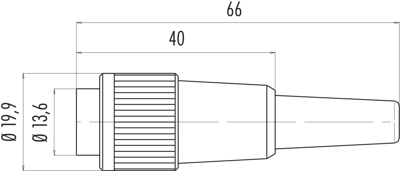

99 0653 00 14 binder Other Circular Connectors Image 1

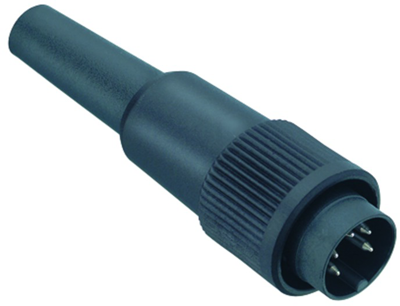

99 0653 00 14 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
11.9952 € *
Available: 55 pcs.
Leadtime: On Request **
Total Price:
12.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
11.9952 €

Circular connector, type Binder 678.

With bayonet quick-lock. Compatible with other products that have the same contact arrangement; Contacts: female contacts copper tin, male contacts copper zinc. Plug contact finish: gold-plated. Cable connection: solder contacts, max. 0.25 mm². Contact carrier: PBT in accordance with UL 94 V-0. Housing: PA 66 in accordance with UL 94 HB. Cable exit: max. 4.0 to 6.0 mm. Degree of protection when plugged in (IEC 60529): IP 40. Test surge voltage: 550 VAC. Contact resistance: 3.0 mohm. Insulation resistance: at least 10 Gohm. Insertion cycles: at least 500. Operating temperatures: - 40 to +85 °C.

Cable plug connectors, straight, type 678.

Technical attributes (type, number of poles, rated voltage/rated current (40 °C)): 99-0653-00-14, 14-pole, 60 V/3.0 A

Technical specifications
Version plug
Additional parts equipped
Shell Material PA
Cable diameter 3 to 6 mm
Contact connection solder cup
contact surface gold-plated
Cable cross-section 0.25 mm²
Assembly cable assembly
Orientation straight
Pin number 14 pole
Type of locking bayonet locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
