99 0653 70 14 | binder

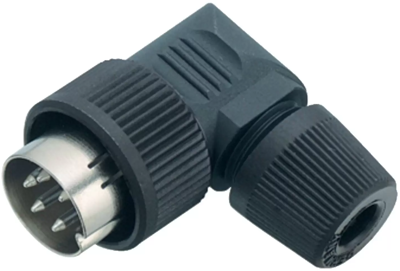

Angle plug, 14 pole, solder connection, bayonet locking, angled, 99 0653 70 14
Unit Price (€ / pc.)
23.6096 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
23.61 € *
Price list
Quantity
Price per unit*
1 pcs.
23.6096 €
10 pcs.
22.1816 €
50 pcs.
20.8607 €
100 pcs.
19.6112 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male angled connector, 99 0653 70 14, binder
Bayonet Male angled connector, Contacts: 14, 4.0-6.0 mm, unshielded, solder, IP40.

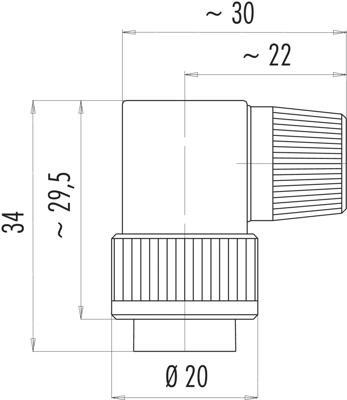

Technical specifications
| Version | Winkelstecker | |
| Cable cross-section | 0,25 mm² | |
| Pin number | 14-polig | |
| Orientation | abgewinkelt | |
| Contact connection | Lötanschluss | |
| Type of locking | Bajonettverriegelung | |
| Cable diameter | 4 bis 6 mm | |
| Assembly | Kabelmontage | |
| Additional parts | bestückt | |
| contact surface | vergoldet | |
| Shell Material | PA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
