99 0657 72 16 | binder
Angle plug, 16 pole, solder connection, bayonet locking, angled, 99 0657 72 16
Unit Price (€ / pc.)
24.7996 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
24.80 € *
Price list
Quantity
Price per unit*
1 pcs.
24.7996 €
10 pcs.
23.3002 €
25 pcs.
21.8960 €
50 pcs.
20.5870 €
*incl. VAT plus shipping costs
**Subject to prior sale

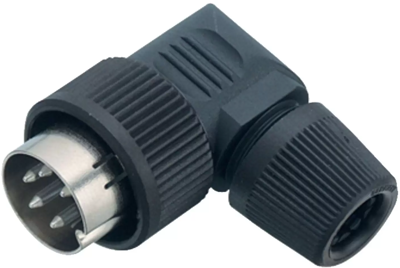

Male angled connector, 99 0657 72 16, binder
Bayonet Male angled connector, Contacts: 16, 6.0-8.0 mm, unshielded, solder, IP40.
Technical specifications
| Version | Winkelstecker | |
| Cable cross-section | 0,25 mm² | |
| Pin number | 16-polig | |
| Orientation | abgewinkelt | |
| Contact connection | Lötanschluss | |
| Type of locking | Bajonettverriegelung | |
| Cable diameter | 6 bis 8 mm | |
| Assembly | Kabelmontage | |
| Additional parts | bestückt | |
| contact surface | vergoldet | |
| Shell Material | PA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
