99 0682 00 07 | binder
Jack, 7 pole, solder connection, bayonet locking, straight, 99 0682 00 07
Unit Price (€ / pc.)
9.3534 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.35 € *
Price list
Quantity
Price per unit*
1 pcs.
9.3534 €
10 pcs.
8.4133 €
50 pcs.
7.7350 €
100 pcs.
6.8187 €
*incl. VAT plus shipping costs
**Subject to prior sale

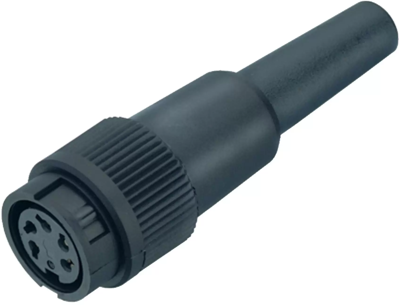

Female cable connector, 99 0682 00 07, binder
Bayonet Female cable connector, Contacts: 7 DIN, 3.0-6.0 mm, unshielded, solder, IP40.
Technical specifications
| Version | jack | |
| Additional parts | equipped | |
| Shell Material | PA | |
| Cable diameter | 3 to 6 mm | |
| Contact connection | solder connection | |
| contact surface | silver-plated | |
| Cable cross-section | 0.75 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 7 pole | |
| Type of locking | bayonet locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
