99 0709 72 05 | binder
Angle plug, 4 pole + PE, screw connection, screw locking, angled, 99 0709 72 05
Unit Price (€ / pc.)
30.8448 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
30.84 € *
Price list
Quantity
Price per unit*
1 pcs.
30.8448 €
10 pcs.
28.9884 €
25 pcs.
26.9535 €
50 pcs.
25.0733 €
*incl. VAT plus shipping costs
**Subject to prior sale

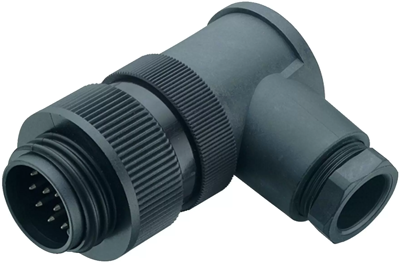

Male angled connector, 99 0709 72 05, binder
RD30 Male angled connector, Contacts: 4+PE, 12.0-14.0 mm, unshielded, screw clamp, IP65, ESTI+, VDE.
Technical specifications
| Version | Winkelstecker | |
| Cable cross-section | 2,5 mm² | |
| Pin number | 4-polig + PE | |
| Orientation | abgewinkelt | |
| Contact connection | Schraubanschluss | |
| Type of locking | Schraubverriegelung | |
| Cable diameter | 12 bis 14 mm | |
| Assembly | Kabelmontage | |
| Additional parts | bestückt | |
| contact surface | versilbert | |
| Shell Material | PA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
