99 0710 00 05 | binder

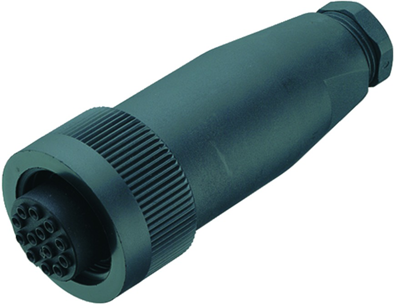

Jack, 4 pole + PE, screw connection, screw locking, straight, 99 0710 00 05
Connector for automation technology, type Binder 694.
With ground terminal and screw locking. Male and female cable connectors with cable bushing Pg 13.5. Splash proof, with VDE certification; Female contacts: copper tin. Male contacts: copper zinc. Contact surface: nickel-plated. Cable connection: screw terminals max. 2.5 mm². Contact carrier PA 66 to UL 94 V-0. Housing: straight/angled PA 66 to UL 94 V-0. Degree of protection in mated state (IEC 60529): IP 65. Cable outlet: 10 to 12 mm. Test surge voltage: 7300 V. Contact resistance: max. 8.0 mohm. Insulation resistance: min. 10 Gohm. Insertion/removal cycles: min. 500. Operating temperatures: - 40 to +100 °C.
Female cable connectors, type 694.
Technical attributes (type, number of poles, rated voltage/rated current (40 °C)): 99-0710-00-05, 4-pole, 400 V/20 A
| Version | jack | |
| Additional parts | equipped | |
| Shell Material | PA | |

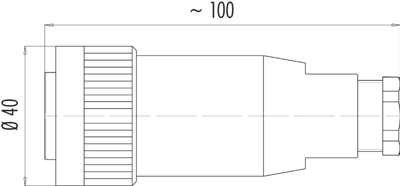

| Cable diameter | 10 to 12 mm | |
| Contact connection | screw connection | |
| contact surface | silver-plated | |
| Cable cross-section | 2.5 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 4 pole + PE | |
| Type of locking | screw locking |
| Country of origin | DE |
| Customs tariff number | 85369010 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
