99 0710 73 05 | binder

Angle coupling, 4 pole + PE, screw connection, screw locking, angled, 99 0710 73 05

Order No.: 70P0896
EAN: 4099891700669
MPN:
99 0710 73 05
Series: 694
binder

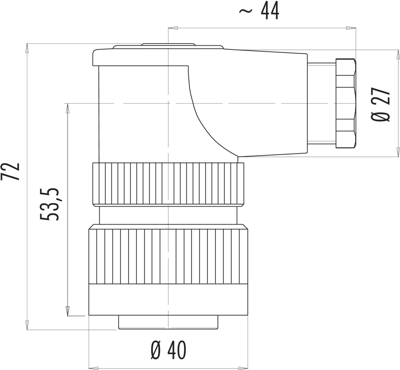

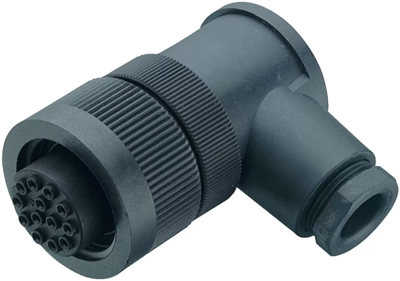

99 0710 73 05 binder Other Circular Connectors Image 1
99 0710 73 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
37.8896 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
37.89 € *
Price list
Quantity
Price per unit*
1 pcs.
37.8896 €
10 pcs.
35.6167 €
25 pcs.
33.1177 €
50 pcs.
30.7972 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female angled connector, 99 0710 73 05, binder

RD30 Female angled connector, Contacts: 4+PE, 14.0-18.0 mm, unshielded, screw clamp, IP65, ESTI+, VDE.

Technical specifications
Version angle coupling
Additional parts equipped
Shell Material PA
Cable diameter 14 to 18 mm
Contact connection screw connection
contact surface silver-plated
Cable cross-section 2.5 mm²
Assembly cable assembly
Orientation angled
Pin number 4 pole + PE
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
