99 2002 00 02 | binder

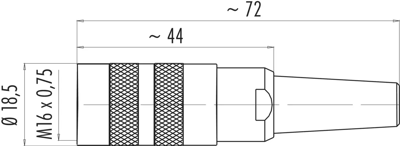

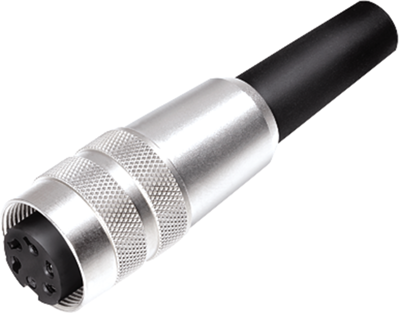

Jack, 2 pole, solder cup, screw locking, straight, 99 2002 00 02
Unit Price (€ / pc.)
10.2697 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
10.27 € *
Price list
Quantity
Price per unit*
1 pcs.
10.2697 €
10 pcs.
9.0321 €
50 pcs.
8.4252 €
150 pcs.
8.0563 €
500 pcs.
7.6279 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector, type Binder 581.
Compatible with other brands having the same contact arrangement; Contacts: female, copper tin. Male contacts: copper zinc. Contact finish: silver-plated. Cable termination: solder terminals, max. 0.75 mm². Male/female contact carrier: PBT in accordance with UL 94 V-0. Screw interlock. Degree of protection when inserted (IEC 60529): IP 40. Test surge voltage: 1750 VAC. Contact resistance: max. 5.0 mohm. Insulation resistance: at least 10 Gohm. Insertion cycles: at least 500. Operating temperatures: - 40 to +85 °C.
Female cable connectors, type 581.
For cable entry from 4.0 to 6.0 mm
Technical attributes (type, number of poles, rated voltage/rated current (40 °C)): 99-2002-00-02, 2-pole, 250 V/7.0 A
Technical specifications
| Version | jack | |
| Additional parts | equipped | |
| Shell Material | PBT | |
| Cable diameter | 4 to 6 mm | |
| Contact connection | solder cup | |
| contact surface | silver-plated | |
| Cable cross-section | 0.75 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 2 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
