99 2010 10 04 | binder

Jack, 4 pole, solder connection, screw locking, straight, 99 2010 10 04

Order No.: 66P3820
EAN: 4099889701128
MPN:
99 2010 10 04
Series: 581
binder

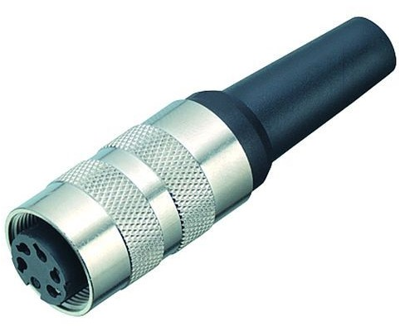

99 2010 10 04 binder Other Circular Connectors Image 1
99 2010 10 04 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.3165 € *
Available: 10 pcs.
Leadtime: On Request **
Total Price:
12.32 € *
Price list
Quantity
Price per unit*
1 pcs.
12.3165 €
10 pcs.
10.8409 €
50 pcs.
10.0912 €
150 pcs.
9.6628 €
500 pcs.
9.1749 €
*incl. VAT plus shipping costs
**Subject to prior sale

Miniature connector, 99-2010-10-04, BINDER

M16 IP40 Female cable connector, Contacts: 4, 4.0-6.0 mm, shieldable, solder, IP40.

Features

  • Contact material: CuSn (Bronze)
  • Degree of protection: IP40
  • Pollution degree: 1
  • Overvoltage category: I
Technical specifications
Version jack
Contact connection solder connection
contact surface silver-plated
Assembly cable assembly
Orientation straight
Pin number 4 pole
Type of locking screw locking
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
