99 2014 00 05 | binder

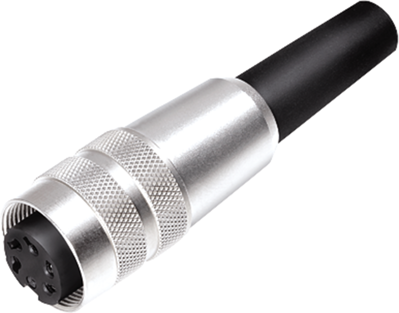

Jack, 5 pole, solder cup, screw locking, straight, 99 2014 00 05
Unit Price (€ / pc.)
11.2455 € *
Available: 181 pcs.
Leadtime: On Request **
Total Price:
11.25 € *
Price list
Quantity
Price per unit*
1 pcs.
11.2455 €
10 pcs.
9.9008 €
50 pcs.
9.2344 €
150 pcs.
8.8179 €
500 pcs.
8.3776 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector, type Binder 581.
Compatible with other brands having the same contact arrangement; Contacts: female, copper tin. Male contacts: copper zinc. Contact finish: silver-plated. Cable termination: solder terminals, max. 0.75 mm². Male/female contact carrier: PBT in accordance with UL 94 V-0. Screw interlock. Degree of protection when inserted (IEC 60529): IP 40. Test surge voltage: 1750 VAC. Contact resistance: max. 5.0 mohm. Insulation resistance: at least 10 Gohm. Insertion cycles: at least 500. Operating temperatures: - 40 to +85 °C.
Female cable connectors, type 581.
For cable entry from 4.0 to 6.0 mm
Technical attributes (type, number of poles, rated voltage/rated current (40 °C)): 99-2014-00-05, 5-pole, 250 V/6.0 A
Technical specifications
| Ausführung | Kupplung | |
| Bestückung | bestückt | |
| Gehäusematerial | PBT | |
| Kabeldurchmesser | 4 bis 6 mm | |
| Kontaktanschluss | Lötkelch | |
| Kontaktoberfläche | versilbert | |
| Leiterquerschnitt | 0,75 mm² | |
| Montage | Kabelmontage | |
| Orientierung | gerade | |
| Polzahl | 5-polig | |
| Verriegelung | Schraubverriegelung |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
