99 2014 20 05 | binder

Jack, 5 pole, solder connection, screw locking, straight, 99 2014 20 05

Order No.: 70P0438
EAN: 4099891696573
MPN:
99 2014 20 05
Series: 581
binder
99 2014 20 05 binder Other Circular Connectors Image 1
99 2014 20 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
11.8405 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
11.84 € *
Price list
Quantity
Price per unit*
1 pcs.
11.8405 €
10 pcs.
11.0075 €
50 pcs.
10.2459 €
100 pcs.
9.2106 €
*incl. VAT plus shipping costs
**Subject to prior sale

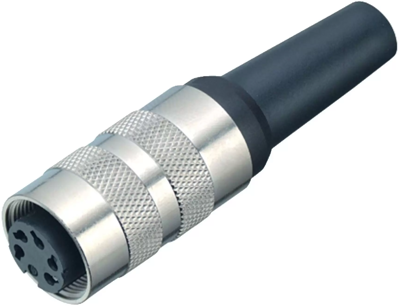

Female cable connector, 99 2014 20 05, binder

M16 IP40 Female cable connector, Contacts: 5, 6.0-8.0 mm, shieldable, solder, IP40.

Technical specifications
Version jack
Additional parts equipped
Cable diameter 6 to 8 mm
Contact connection solder connection
contact surface silver-plated
Cable cross-section 0.75 mm²
Assembly cable assembly
Orientation straight
Pin number 5 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
