99 2025 02 07 | binder

Plug, 7 pole, solder cup, screw locking, straight, 99 2025 02 07

Order No.: 66F212
EAN: 4099889726930
MPN:
99 2025 02 07
Series: 581
binder

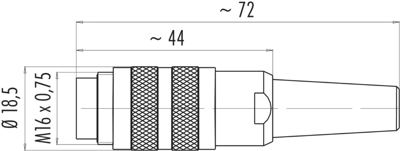

99 2025 02 07 binder Other Circular Connectors Image 1

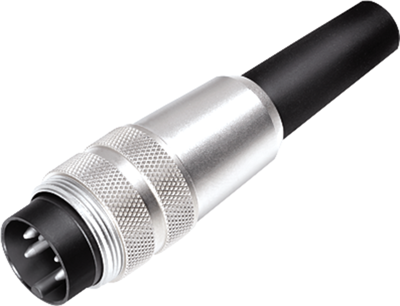

99 2025 02 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.2094 € *
Available: 5 pcs.
Leadtime: On Request **
Total Price:
12.21 € *
Price list
Quantity
Price per unit*
1 pcs.
12.2094 €
10 pcs.
10.7457 €
50 pcs.
10.0079 €
150 pcs.
9.5795 €
500 pcs.
9.0797 €
*incl. VAT plus shipping costs
**Subject to prior sale

Circular connector, type Binder 581.

Compatible with other brands having the same contact arrangement; Contacts: female, copper tin. Male contacts: copper zinc. Contact finish: silver-plated. Cable termination: solder terminals, max. 0.75 mm². Male/female contact carrier: PBT in accordance with UL 94 V-0. Screw interlock. Degree of protection when inserted (IEC 60529): IP 40. Test surge voltage: 910 V. Contact resistance: max. 5.0 mohm. Insulation resistance: at least 10 Gohm. Insertion cycles: at least 500. Operating temperatures: - 40 to +85 °C.

For cable outlets from 6.0 to 8.0 mm, type 581.

Technical attributes (type, number of poles, rated voltage/rated current (40 °C)): 99-2025-02-07, 7-pole, 125 V/5.0 A

Technical specifications
Version plug
Additional parts equipped
Shell Material PBT
Cable diameter 6 to 8 mm
Contact connection solder cup
contact surface silver-plated
Cable cross-section 0.75 mm²
Assembly cable assembly
Orientation straight
Pin number 7 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
