99 2029 10 12 | binder

Plug, 12 pole, solder connection, screw locking, straight, 99 2029 10 12

Order No.: 66P3892
EAN: 4099889701203
MPN:
99 2029 10 12
Series: 581
binder

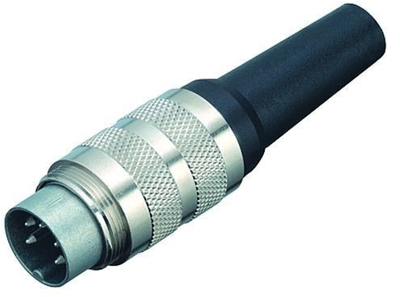

99 2029 10 12 binder Other Circular Connectors Image 1
99 2029 10 12 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
20.8369 € *
Available: 28 pcs.
Leadtime: On Request **
Total Price:
20.84 € *
Price list
Quantity
Price per unit*
1 pcs.
20.8369 €
10 pcs.
18.3379 €
50 pcs.
17.0884 €
150 pcs.
16.3387 €
500 pcs.
15.5057 €
*incl. VAT plus shipping costs
**Subject to prior sale

Miniature connector, 99-2029-10-12, BINDER

M16 IP40 Male cable connector, Contacts: 12, 4.0-6.0 mm, shieldable, solder, IP40.

Features

  • Contact material: CuZn
  • Degree of protection: IP40
  • Pollution degree: 1
  • Overvoltage category: I
Technical specifications
Version plug
Cable diameter 4 to 6 mm
Contact connection solder connection
contact surface gold-plated
Cable cross-section 0.25 mm²
Assembly cable assembly
Orientation straight
Pin number 12 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
