99 2030 00 12 | binder

Jack, 12 pole, solder cup, screw locking, straight, 99 2030 00 12

Order No.: 66F236
EAN: 4099889727050
MPN:
99 2030 00 12
Series: 581
binder

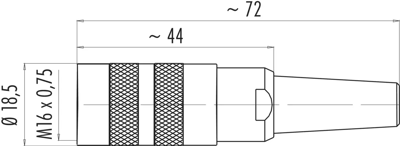

99 2030 00 12 binder Other Circular Connectors Image 1

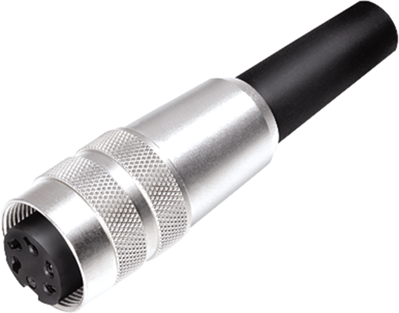

99 2030 00 12 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
15.4700 € *
Available: 2 pcs.
Leadtime: On Request **
Total Price:
15.47 € *
Price list
Quantity
Price per unit*
1 pcs.
15.4700 €
10 pcs.
14.3871 €
50 pcs.
13.3756 €
100 pcs.
12.4355 €
*incl. VAT plus shipping costs
**Subject to prior sale

Circular connector, type Binder 581.

Compatible with other brands having the same contact arrangement; Contacts: female, copper tin. Male contacts: copper zinc. Contact finish: gold-plated. Cable termination: solder terminals, max. 0.25 mm². Male/female contact carrier: PBT in accordance with UL 94 V-0. Screw interlock. Degree of protection when inserted (IEC 60529): IP 40. Test surge voltage: 550 VAC. Contact resistance: max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Insertion cycles: at least 500. Operating temperatures: - 40 to +85 °C.

Female cable connectors, type 581.

For cable entry from 4.0 to 6.0 mm

Technical attributes (type, number of poles, rated voltage/rated current (40 °C)): 99-2030-00-12, 12-pole, 60 V/3.0 A

Technical specifications
Version jack
Additional parts equipped
Shell Material PBT
Cable diameter 4 to 6 mm
Contact connection solder cup
contact surface gold-plated
Cable cross-section 0.25 mm²
Assembly cable assembly
Orientation straight
Pin number 12 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
