99 2033 02 14 | binder

Plug, 14 pole, solder cup, screw locking, straight, 99 2033 02 14

Order No.: 66F218
EAN: 4099889726961
MPN:
99 2033 02 14
Series: 581

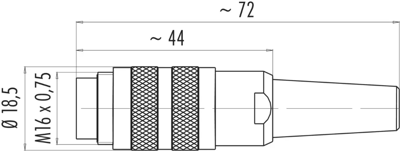

99 2033 02 14 binder Other Circular Connectors Image 1

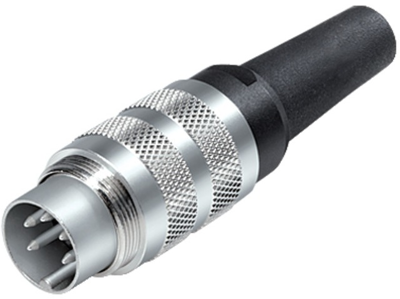

99 2033 02 14 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
22.3363 € *
Available: 29 pcs.
Leadtime: On Request **
Total Price:
22.34 € *
Price list
Quantity
Price per unit*
1 pcs.
22.3363 €
10 pcs.
19.6469 €
50 pcs.
18.3141 €
150 pcs.
17.5168 €
500 pcs.
16.6243 €
*incl. VAT plus shipping costs
**Subject to prior sale

Circular connector, type Binder 581.

Compatible with other brands having the same contact arrangement; Contacts: female, copper tin. Male contacts: copper zinc. Contact finish: gold-plated. Cable termination: solder terminals, max. 0.25 mm². Male/female contact carrier: PBT in accordance with UL 94 V-0. Screw interlock. Degree of protection when inserted (IEC 60529): IP 40. Test surge voltage: 550 VAC. Contact resistance: max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Insertion cycles: at least 500. Operating temperatures: - 40 to +85 °C.

For cable outlets from 6.0 to 8.0 mm, type 581.

Technical attributes (type, number of poles, rated voltage/rated current (40 °C)): 99-2033-02-14, 14-pole, 60 V/3.0 A

Technical specifications
Ausführung Stecker
Bestückung bestückt
Gehäusematerial PBT
Kabeldurchmesser 6 bis 8 mm
Kontaktanschluss Lötkelch
Kontaktoberfläche vergoldet
Leiterquerschnitt 0,25 mm²
Montage Kabelmontage
Orientierung gerade
Polzahl 14-polig
Verriegelung Schraubverriegelung
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
