99 2041 02 19 | binder

Plug, 19 pole, solder connection, screw locking, straight, 99 2041 02 19

Order No.: 66P3913
EAN: 4099889701227
MPN:
99 2041 02 19
Series: 581
binder

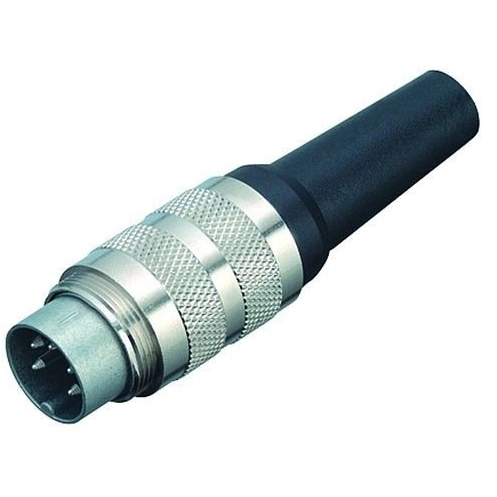

99 2041 02 19 binder Other Circular Connectors Image 1
99 2041 02 19 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
19.5279 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
19.53 € *
Price list
Quantity
Price per unit*
1 pcs.
19.5279 €
10 pcs.
18.3617 €
50 pcs.
17.2550 €
100 pcs.
16.2316 €
*incl. VAT plus shipping costs
**Subject to prior sale

Miniature connector, 99-2041-02-19, BINDER

M16 IP40 Male cable connector, Contacts: 19, 6.0-8.0 mm, shieldable, solder, IP40.

Features

  • Contact material: CuZn
  • Degree of protection: IP40
  • Pollution degree: 1
  • Overvoltage category: I
Technical specifications
Version plug
Contact connection solder connection
contact surface gold-plated
Assembly cable assembly
Orientation straight
Pin number 19 pole
Type of locking screw locking
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
