99 2042 00 19 | binder

Jack, 19 pole, solder connection, screw locking, straight, 99 2042 00 19

Order No.: 70P0484
EAN: 4099891697037
MPN:
99 2042 00 19
Series: 581
binder
99 2042 00 19 binder Other Circular Connectors Image 1
99 2042 00 19 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
22.6695 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
22.67 € *
Price list
Quantity
Price per unit*
1 pcs.
22.6695 €
10 pcs.
21.3129 €
50 pcs.
20.0277 €
100 pcs.
18.8258 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female cable connector, 99 2042 00 19, binder

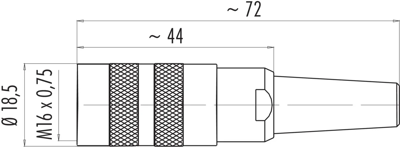

M16 IP40 Female cable connector, Contacts: 19, 4.0-6.0 mm, shieldable, solder, IP40.

Technical specifications
Version jack
Additional parts equipped
Cable diameter 4 to 6 mm
Contact connection solder connection
contact surface gold-plated
Cable cross-section 0.25 mm²
Assembly cable assembly
Orientation straight
Pin number 19 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
