99 2442 32 04 | binder
Jack, 3 pole + PE, screw connection, screw locking, straight, 99 2442 32 04
Unit Price (€ / pc.)
22.3958 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
22.40 € *
Price list
Quantity
Price per unit*
1 pcs.
22.3958 €
10 pcs.
21.0511 €
50 pcs.
19.7778 €
100 pcs.
18.5878 €
*incl. VAT plus shipping costs
**Subject to prior sale

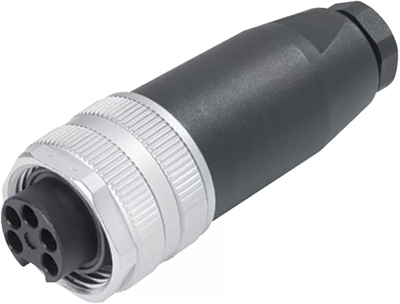

Female cable connector, 99 2442 32 04, binder
7/8" Female cable connector, Contacts: 3+PE, 10.0-12.0 mm, unshielded, screw clamp, IP67, UL, VDE.
Technical specifications
| Version | jack | |
| Additional parts | equipped | |
| Shell Material | PBT | |
| Cable diameter | 10 to 12 mm | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Cable cross-section | 1.5 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 3 pole + PE | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
