99 2443 42 04 | binder
Plug, 3 pole + PE, screw connection, screw locking, straight, 99 2443 42 04
Unit Price (€ / pc.)
23.8000 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
23.80 € *
Price list
Quantity
Price per unit*
1 pcs.
23.8000 €
10 pcs.
22.3839 €
50 pcs.
21.0392 €
100 pcs.
19.7659 €
*incl. VAT plus shipping costs
**Subject to prior sale

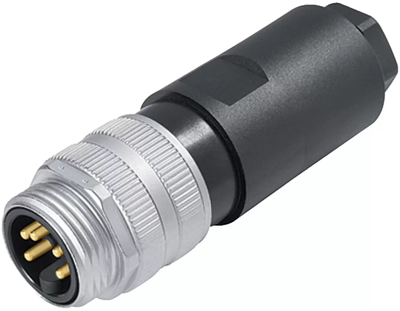

Male cable connector, 99 2443 42 04, binder
7/8" Male cable connector, Contacts: 3+PE, 12.0-14.0 mm, unshielded, screw clamp, IP67, UL, VDE.

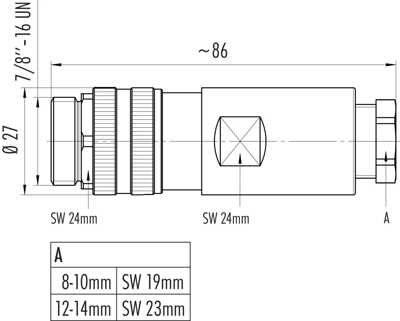

Technical specifications
| Version | Stecker | |
| Cable cross-section | 1,5 mm² | |
| Pin number | 3-polig + PE | |
| Orientation | gerade | |
| Contact connection | Schraubanschluss | |
| Type of locking | Schraubverriegelung | |
| Cable diameter | 12 bis 14 mm | |
| Assembly | Kabelmontage | |
| Additional parts | bestückt | |
| contact surface | vergoldet | |
| Shell Material | PBT |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
