99 2445 282 05 | binder

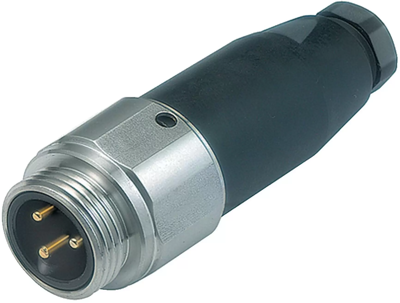

Plug, 4 pole + PE, screw connection, screw locking, straight, 99 2445 282 05
Unit Price (€ / pc.)
33.2010 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
33.20 € *
Price list
Quantity
Price per unit*
1 pcs.
33.2010 €
10 pcs.
31.2018 €
25 pcs.
29.0241 €
50 pcs.
26.9892 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male cable connector, 99 2445 282 05, binder
7/8" Male cable connector, Contacts: 4+PE, 6.0-8.0 mm, unshielded, screw clamp, IP67, UL, VDE.
Technical specifications
| Version | plug | |
| Additional parts | equipped | |
| Shell Material | PBT | |
| Cable diameter | 6 to 8 mm | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Cable cross-section | 1.5 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 4 pole + PE | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
