99 2445 42 05 | binder
Plug, 4 pole + PE, screw connection, screw locking, straight, 99 2445 42 05
Unit Price (€ / pc.)
25.5612 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
25.56 € *
Price list
Quantity
Price per unit*
1 pcs.
25.5612 €
10 pcs.
24.0261 €
25 pcs.
22.5862 €
50 pcs.
21.2296 €
*incl. VAT plus shipping costs
**Subject to prior sale

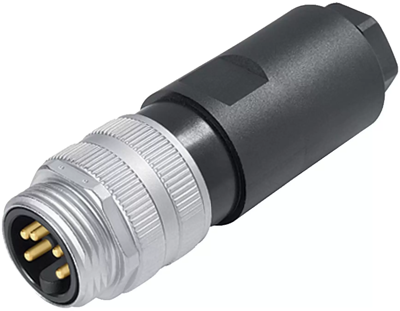

Male cable connector, 99 2445 42 05, binder

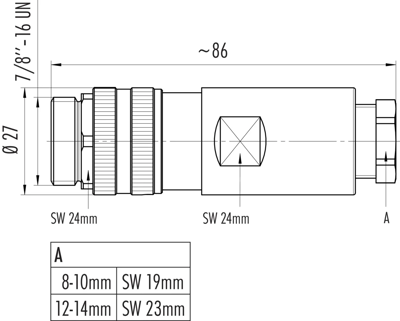

7/8" Male cable connector, Contacts: 4+PE, 12.0-14.0 mm, unshielded, screw clamp, IP67, UL, VDE.
Technical specifications
| Version | plug | |
| Additional parts | equipped | |
| Shell Material | PBT | |
| Cable diameter | 12 to 14 mm | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Cable cross-section | 1.5 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 4 pole + PE | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
