99 4218 110 07 | binder

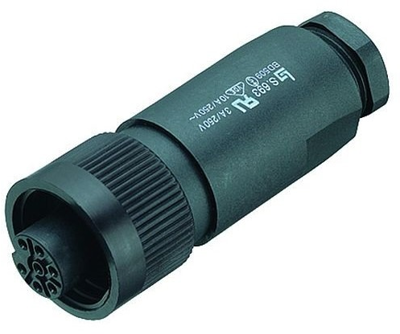

Jack, 6 pole + PE, screw connection, screw locking, straight, 99 4218 110 07
Unit Price (€ / pc.)
18.6473 € *
Available: 11 pcs.
Available in 5 Days: 100 pcs.
Leadtime: On Request **
Total Price:
18.65 € *
Price list
Quantity
Price per unit*
1 pcs.
18.6473 €
10 pcs.
16.4220 €
50 pcs.
15.3034 €
150 pcs.
14.6132 €
500 pcs.
13.8754 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power connector, 99-4218-110-07, BINDER
RD24 Female cable connector, Contacts: 6+PE, 8.0-10.0 mm, unshielded, screw clamp, IP67, UL, ESTI+, VDE, PG 11.
Features
- Contact material: CuSn (Bronze)
- Degree of protection: IP67
- Pollution degree: 3
- Overvoltage category: III
Technical specifications
| Version | jack | |
| Cable diameter | 8 to 10 mm | |
| Contact connection | screw connection | |
| contact surface | silver-plated | |
| Cable cross-section | 1.5 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 6 pole + PE | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
