99 4218 215 07 | binder
Angle coupling, 6 pole + PE, screw connection, screw locking, angled, 99 4218 215 07
Unit Price (€ / pc.)
20.7536 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
20.75 € *
Price list
Quantity
Price per unit*
1 pcs.
20.7536 €
10 pcs.
19.5041 €
50 pcs.
18.3379 €
100 pcs.
17.2312 €
*incl. VAT plus shipping costs
**Subject to prior sale

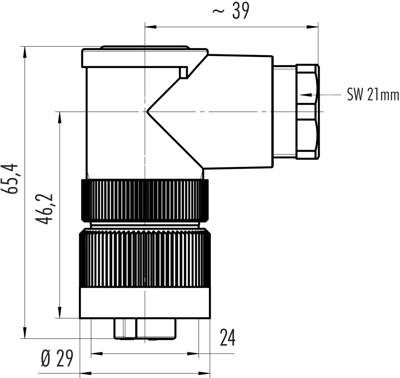

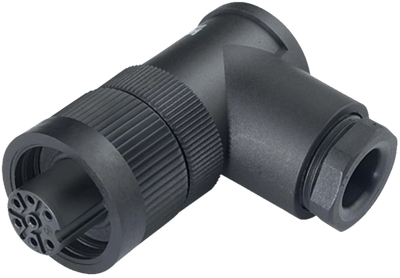

Female angled connector, 99 4218 215 07, binder
RD24 Female angled connector, Contacts: 6+PE, 10.0-12.0 mm, unshielded, screw clamp, IP67, UL, ESTI+, VDE, PG 13.5.
Technical specifications
| Version | angle coupling | |
| Additional parts | equipped | |
| Cable diameter | 10 to 12 mm | |
| Contact connection | screw connection | |
| contact surface | silver-plated | |
| Cable cross-section | 1.5 mm² | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 6 pole + PE | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
