99 4218 70 07 | binder

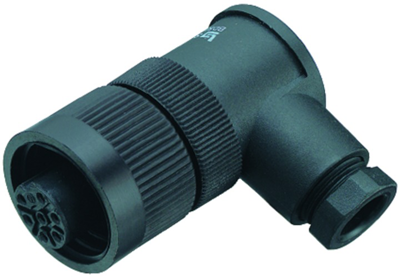

Angle coupling, 6 pole + PE, screw connection, screw locking, angled, 99 4218 70 07
Unit Price (€ / pc.)
26.4537 € *
Available: 10 pcs.
Available in 5 Days: 100 pcs.
Leadtime: On Request **
Total Price:
26.45 € *
Price list
Quantity
Price per unit*
1 pcs.
26.4537 €
10 pcs.
23.2764 €
50 pcs.
21.6937 €
150 pcs.
20.7298 €
500 pcs.
19.6707 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connector for automation technology, type Binder 693.
Robust design; Female contact: copper tin. Contact finish: silver-plated. Cable connection: screw terminals max. 1.5 mm². Contact carrier and housing: PBT in accordance with UL 94 V-0. Housing protection class: IP 67. Cable screw coupling: Pg 9. Rated voltage: 250 V. Test voltage: 4800 V. Rated current (40 °C): 10 A. Contact resistance: max. 5.0 mohm. Insulation resistance: min. 10 Gohm. Operating temperatures: - 40 to +100 °C. Certifications: VDE, UL, SEV.
Female angled connectors
type: 99-4218-70-07
Technical specifications
| Version | angle coupling | |
| Additional parts | equipped | |
| Shell Material | PBT | |
| Cable diameter | 6 to 8 mm | |
| Contact connection | screw connection | |
| contact surface | silver-plated | |
| Cable cross-section | 1.5 mm² | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 6 pole + PE | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
