99 4221 70 04 | binder

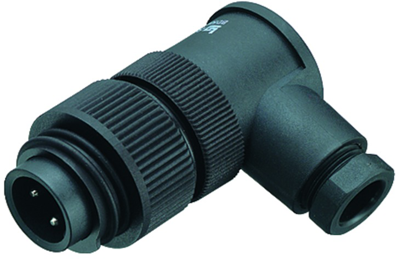

Angle plug, 3 pole + PE, screw connection, screw locking, angled, 99 4221 70 04
Unit Price (€ / pc.)
18.7425 € *
Available: 9 pcs.
Available in 5 Days: 100 pcs.
Leadtime: On Request **
Total Price:
18.74 € *
Price list
Quantity
Price per unit*
1 pcs.
18.7425 €
10 pcs.
16.5053 €
50 pcs.
15.3748 €
150 pcs.
14.6846 €
500 pcs.
13.9468 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connector for automation technology, type Binder 693.
Robust design; Male contact: CuZn. Contact finish: silver-plated. Cable connection: screw terminal max. 2.5 mm². Contact carrier and housing: PBT in accordance with UL 94 V-0. Housing protection class: IP 67. Cable screw coupling: Pg 9. Rated voltage: 400 V. Test voltage: 7300 V. Rated current (40 °C): 16 A. Contact resistance: max. 5.0 mohm. Insulation resistance: min. 10 Gohm. Operating temperatures: - 40 to +100 °C. Certifications: VDE, UL, SEV.
Male angled connectors
type: 99-4221-70-04

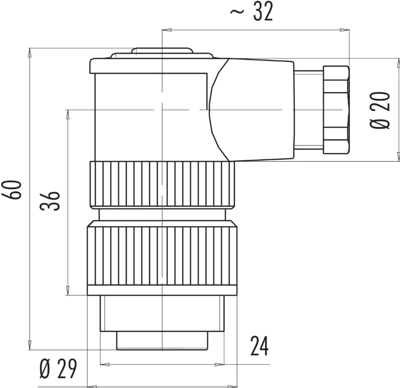

Technical specifications
| Version | Winkelstecker | |
| Cable cross-section | 2,5 mm² | |
| Pin number | 3-polig + PE | |
| Orientation | abgewinkelt | |
| Contact connection | Schraubanschluss | |
| Type of locking | Schraubverriegelung | |
| Cable diameter | 6 bis 8 mm | |
| Assembly | Kabelmontage | |
| Additional parts | bestückt | |
| contact surface | versilbert | |
| Shell Material | PBT |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
