99 4222 215 04 | binder
Angle coupling, 3 pole + PE, screw connection, screw locking, angled, 99 4222 215 04
Unit Price (€ / pc.)
19.4446 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
19.44 € *
Price list
Quantity
Price per unit*
1 pcs.
19.4446 €
10 pcs.
18.2784 €
50 pcs.
17.1836 €
100 pcs.
16.1483 €
*incl. VAT plus shipping costs
**Subject to prior sale

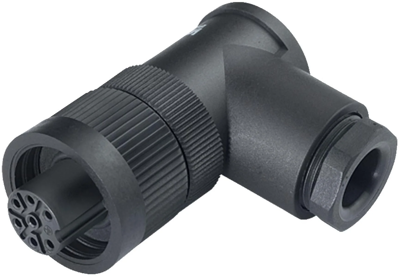

Female angled connector, 99 4222 215 04, binder
RD24 Female angled connector, Contacts: 3+PE, 10.0-12.0 mm, unshielded, screw clamp, IP67, UL, ESTI+, VDE, PG 13.5.
Technical specifications
| Ausführung | Winkelkupplung | |
| Bestückung | bestückt | |
| Kabeldurchmesser | 10 bis 12 mm | |
| Kontaktanschluss | Schraubanschluss | |
| Kontaktoberfläche | versilbert | |
| Leiterquerschnitt | 2,5 mm² | |
| Montage | Kabelmontage | |
| Orientierung | abgewinkelt | |
| Polzahl | 3-polig + PE | |
| Verriegelung | Schraubverriegelung |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
