99 4225 00 07 | binder

Plug, 6 pole + PE, solder cup, screw locking, straight, 99 4225 00 07

Order No.: 67F9902
EAN: 4099889733204
MPN:
99 4225 00 07
Series: 693
binder

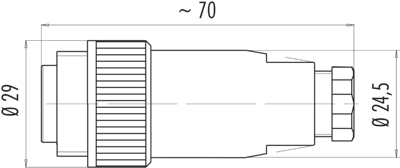

99 4225 00 07 binder Other Circular Connectors Image 1
99 4225 00 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
14.9345 € *
Available: 2 pcs.
Next delivery: 34 pcs. on 2025-01-16
Available in 5 Days: 30 pcs.
Leadtime: On Request **
Total Price:
14.93 € *
Price list
Quantity
Price per unit*
1 pcs.
14.9345 €
10 pcs.
13.1495 €
50 pcs.
12.2451 €
150 pcs.
11.7215 €
500 pcs.
11.1146 €
*incl. VAT plus shipping costs
**Subject to prior sale

Connector for automation technology, type Binder 693.

Robust design; Male contact: CuZn. Contact finish: silver-plated. Cable connection: solder terminals max. 0.75 mm². Contact carrier and housing: PBT in accordance with UL 94 V-0. Housing protection class: IP 67. Cable screw coupling: Pg 9. Rated voltage: 250 V. Test voltage: 4800 V. Rated current (40 °C): 10 A. Contact resistance: max. 5.0 mohm. Insulation resistance: min. 10 Gohm. Operating temperatures: - 40 to +100 °C. Certifications: VDE, UL, SEV.

Cable plug connectors

type: 99-4225-00-07

Technical specifications
Version plug
Additional parts equipped
Shell Material PBT
Cable diameter 6 to 9.5 mm
Contact connection solder cup
contact surface silver-plated
Cable cross-section 0.75 mm²
Assembly cable assembly
Orientation straight
Pin number 6 pole + PE
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
