99 4602 10 09 | binder
Jack, 9 pole, solder connection, screw locking, straight, 99 4602 10 09
Unit Price (€ / pc.)
38.4489 € *
Available: 0 pcs.
Leadtime: On Request **
Power connector, 99-4602-10-09, BINDER

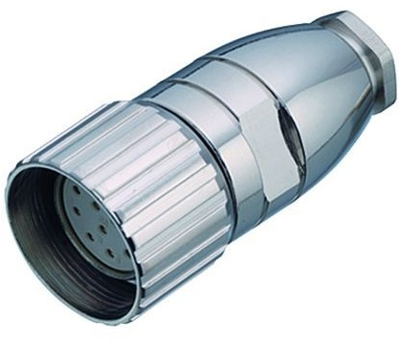

M23 Female cable connector, Contacts: 9, 6.0-10.0 mm, unshielded, solder, IP67.
Features
- Contact material: CuSn (Bronze)
- Degree of protection: IP67
- Pollution degree: 3
- Overvoltage category: I
Technical specifications
| Version | Kupplung | |
| Cable cross-section | 1,5 mm² | |
| Pin number | 9-polig | |
| Orientation | gerade | |
| Contact connection | Lötanschluss | |
| Type of locking | Schraubverriegelung | |
| Cable diameter | 6 bis 10 mm | |
| Assembly | Kabelmontage | |
| Additional parts | bestückt | |
| contact surface | vergoldet | |
| Shell Material | Metall |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
