99 4606 10 12 | binder

Jack, 12 pole, solder connection, screw locking, straight, 99 4606 10 12

Order No.: 66P4247
EAN: 4099889701609
MPN:
99 4606 10 12
Series: 623

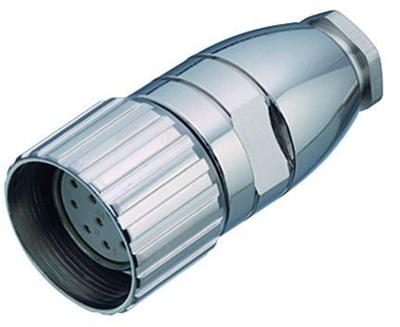

99 4606 10 12 binder Other Circular Connectors Image 1

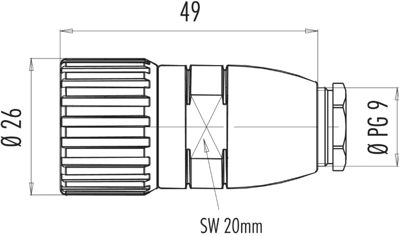

99 4606 10 12 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
26.6798 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
26.68 € *
Price list
Quantity
Price per unit*
1 pcs.
26.6798 €
10 pcs.
23.9785 €
25 pcs.
21.1463 €
50 pcs.
17.9333 €
*incl. VAT plus shipping costs
**Subject to prior sale

Sensor-actuator connector, 99-4606-10-12, BINDER

M23 Female cable connector, Contacts: 12, 6.0-10.0 mm, unshielded, solder, IP67.

Features

  • Contact material: CuSn (Bronze)
  • Pollution degree: 3
  • Overvoltage category: I
Technical specifications
Version Kupplung
Additional parts bestückt
Cable diameter 6 bis 10 mm
Contact connection Lötanschluss
contact surface vergoldet
Cable cross-section 1,0 mm²
Assembly Kabelmontage
Orientation gerade
Pin number 12-polig
Type of locking Schraubverriegelung
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
